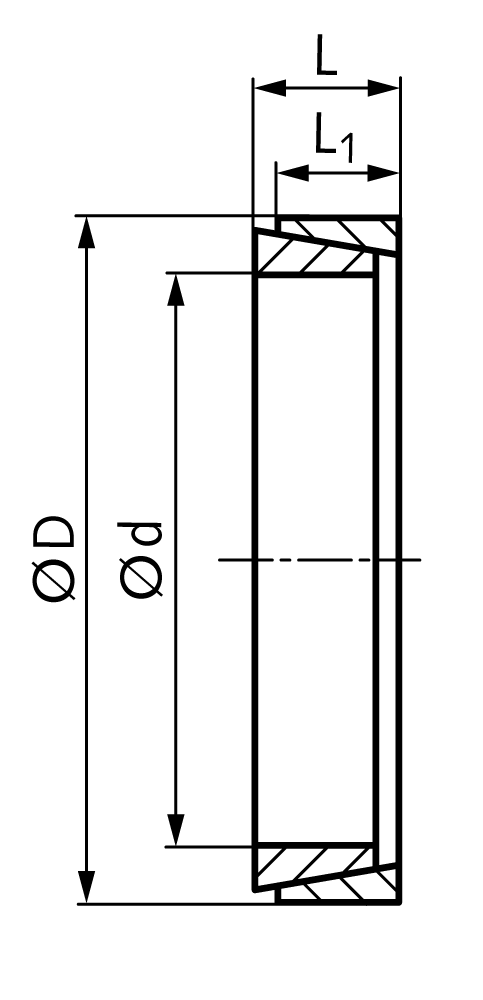

| d [mm] | 80 |
| D [mm] | 91 |
| L [mm] | 17,0 |
| L1 [mm] | 15,0 |
| Torque T [Nm] | 2160 |
| Axial Force Fax [kN] | 54 |
| PW [N/mm 2] | 123 |
| PN [N/mm 2] | 103 |
| FA [kN] | 300 |
| Weight [kg] | 0,21 |
Locking assembly COM-R bore 80mm size 80x91x17mm (2 loose rings) SKU: 61500080
Locking Assemblies COM-R boreholes 6 - 120 mm
Locking assembly COM-R bore 80mm size 80x91x17mm (2 loose rings) SKU: 61500080
₹1,553.75
Material: Steel.
- For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft.
- For lower to medium torques.
- Not self-centering.
- Loose clamping rings. For use with customer¿s pressure sleeves and customer¿s screws.
- Up to 4 clamping sets can be used in line.
- Versatile usage, for customized solutions.
Fit: Shaft h8, Hub H8.
Surface roughness hub / shaft Rz max. 12.5 µm.
More sizes up to d=500mm for 270,000Nm are available.
Price and delivery time on request.
Out of stock
| Weight | 0.21 g |
|---|---|
| Dimensions | 91 × 17 × 91 cm |
